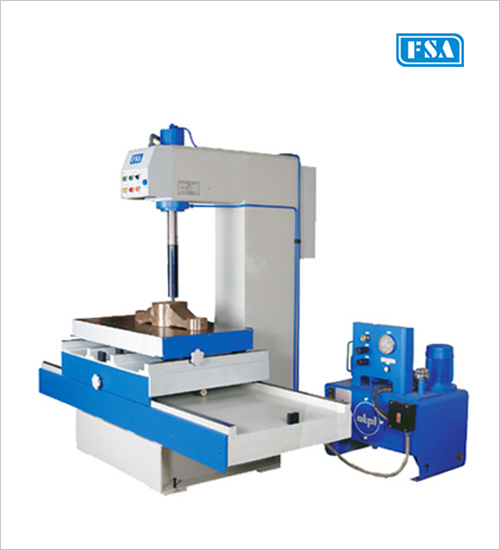

We are Manufacturer, Supplier, Exporter of Bend and Rebend Testing Machines and our set up is situated in Sangli, Maharashtra, India.
- • To conduct testing of carbon steel bars upto 40 mm diameter for reinforcement of concrete.
- • C-frame design & hydraulically operated.
- • Maximum load capacity provided is 100 kN.
- • Dia.of support rollers is 100mm & distance between support rollers is 400mm.
- • Different sizes of formers (tools) are available from diameter 6 to 400mm.
- • Suitable re-bending tools supplied which will be incorporated in the machine.
- • Hinged grilled safety doors at front is provided for safety.
- • Accuracy conforming to BS : 4449
Technical Specifications
| Specification | |
| Hinged grilled safety door at front is provided. | |
| Maximum load capacity | 10,000 kgs. |
| Stroke of piston | 300 mm / min. |
| Height of fall | 250 mm. |
| Maximum operating pressure of hydraulic system | 200 kg /cm sq. |
| Dia of support rollers | 100 mm. |
| Distance between support rollers (adjustable) | 400 mm. |
| Formers of following diameters provided along with machine | Dia. - 12, 16, 20, 24, 30, 32, 40, 50, 60, 80, 140, 175, 224, 280 mm |
| Suitable re-bending tools supplied which will be incorporated in the machine. | |
| The up down of piston is through hand operated DC valve. | |
| The piston speed during down stroke is adjustable through manual operation of flow control valve. | |
